‘No flat elevations’
October 2016

Another collaboration between aluminium building systems supplier HUECK UK and façade contractor McMullen Facades Ltd has seen the completion of The Pinnacle in south west London.

Rising 170 feet high, the tower construction comprises 88 luxury apartments, including a number of penthouses, with views of the City. Developed by St. George PLC, this 15-storey building is within its award-winning riverside project, Battersea Reach.

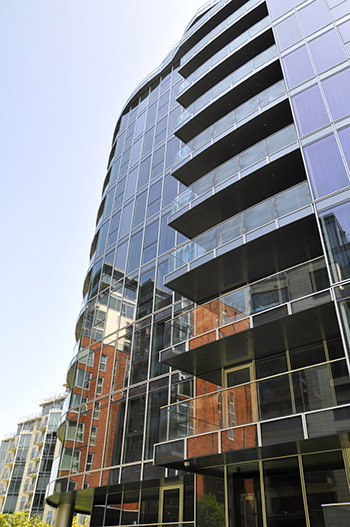

The Pinnacle’s fully glazed curved façade has been manufactured using the Trigon L aluminium system from Hueck.

“We are using Hueck systems extensively across many of our current projects, and have successfully collaborated with Hueck UK on a series of iconic buildings over the past few years,” said Derek Price, operations director at McMullen Facades Ltd.

“The Pinnacle has a complex design, with no flat elevations, and we were looking for a range of high performance systems, not just curtain walling, but also window and door systems, to meet a series of demanding requirements.

Hueck’s portfolio is very broad, allowing for great flexibility, and enabling us to deliver a complex design while ensuring the correct building tolerances were achieved.

“We worked closely with the architect, façade consultants, and our supplier – Hueck UK, through the design stage, ensuring a smooth delivery of the project, on time and on budget.”

Approximately 1,300 unitised panels shape The Pinnacle’s curved envelope. Aside from Trigon L, the building also has nearly 180 Lambda 65 windows and doors. Featuring low thresholds, the doors comply with the Life Time Homes standards, and achieve 600Pa air permeability/water tightness.

Hueck’s Volato M lift/slide doors have also been specified for apartments and penthouses opening into private balconies or terraces.

Leon Friend, Project Development Director at Hueck, said: “The Hueck Trigon L unitised façade system, combined with McMullen Facades’ engineering expertise, delivers The Pinnacle’s wavy appearance, a tribute to the river Thames, which it overlooks. Aside from looking the part, our systems have had a substantial contribution to meeting stringent energy performance requirements and practicality needs.”

www.hueck.com
