Modification allows bigger, heavier glass panels
July 2015

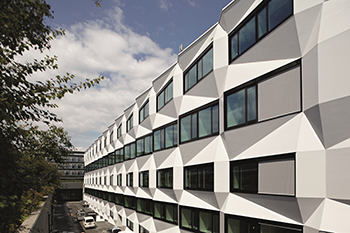

The CS 86-HI multi-chamber, high insulation aluminium door and aluminium window system from REYNAERS is now able to accommodate larger glass panes, including triple glazing and pivoting window options.

A modification to CS 86 now allows the installation of glazing panels from the outside, avoiding the need to transport glass through buildings. This also allows the use of larger and heavier glazed panels, including triple glazing up to 500kg, offering greater flexibility in terms of both design and installation.

Pivoting openers with hinges fully integrated into the profiles have also been introduced. Depending on the position of the hinges, the pivot window can be supplied with a horizontal axis (max. 200kg), or a vertical axis (max. 160kg). The new system helps create a more flexible building design, allowing glass panes up to a maximum height of 2500mm.

Several of the CS 86-HI window and door configurations achieve the Minergie and Minergie-P component labels, which corresponds to Passivhaus standards of a Uw value of ≤0.8 W/m2K. Variants of CS 86 are also compliant with the Secured by Design initiative offering optimum levels of security and performance.

www.reynaers.co.uk
